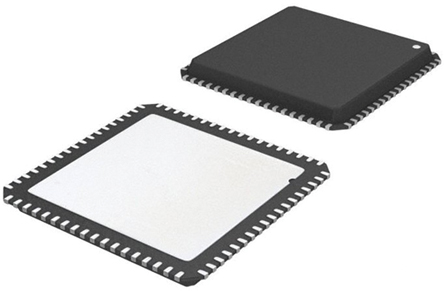

Image is for your reference only,please check specifications for details

AD9963BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC345967
Category:
Analog to Digital, ADC IC
Package:
LFCSP-72
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD9963BCPZ Analog to Digital Converter, 1.72V, 3.63V, LFCSP
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 57.96

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Dual 10-bit/12-bit, 100 MSPS ADC * SNR = 67 dB, fIN = 30.1 MHz * Dual 10-bit/12-bit, 170 MSPS DAC * ACLR = 74 dBc * 5 channels of analog auxiliary input/output * Low power, * Supports full and half-duplex data interfaces * Small 72-lead LFCSP lead-free package

Show

AD9963BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	72 Pin
Case/Package	LFCSP-72
Supply Voltage (DC)	1.72V (min)
Number of Channels	2 Channel
Number of Positions	72 Position
Power Dissipation	425 mW
Sample Rate	100000 KSPS
Resolution (Bits)	12.0 Bit
Input Capacitance	8.00 pF
Input Impedance	4.00 kΩ
Number of ADCs	2 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.63 V
Supply Voltage (Min)	1.72 V
	Show
Size-Length	10.1 mm
Size-Width	10 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
