Description
- Product Details

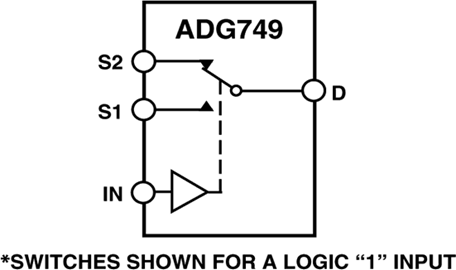

- The ADG749 is a monolithic CMOS SPDT switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.
- The ADG749 can operate from a single-supply range of 1.8 V to 5.5 V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices, Inc.
- Each switch of the ADG749 conducts equally well in both directions when on. The ADG749 exhibits break-before-make switching action.<.p>
- Because of the advanced submicron process, −3 dB bandwidths of greater than 200 MHz can be achieved.
- The ADG749 is available in a 6-lead SC70 package.
- **Product Highlights**
- 1. 1.8 V to 5.5 V Single-Supply Operation. The ADG749 offers high performance, including low on resistance and fast switching times, and is fully specified and guaranteed with 3 V and 5 V supply rails.
- 2. Very Low RON (5 Ω Maximum at 5 V and 10 Ω Maximum at 3 V). At 1.8 V operation, RON is typically 40 Ω over the temperature range.
- 3. Automotive Temperature Range: −40°C to +125°C.
- 4. On Resistance Flatness (RFLAT(ON)) (0.75 Ω typical).
- 5. −3 dB Bandwidth > 200 MHz.
- 6. Low Power Dissipation. CMOS construction ensures low power dissipation.
- 7. Fast tON/tOFF.
- 8. Tiny, 6-lead SC70 Package.
- **Applications**
- Battery-powered systems
- Communication systems
- Sample-and-hold systems
- Audio signal routing
- Video switching
- Mechanical reed relay replacement
- ### Features and Benefits
- 1.8 V to 5.5 V Single Supply
- 5 Ω (maximum) on resistance
- 0.75 Ω (typical) on resistance flatness
- Automotive temperature range:
- −40°C to +125°C
- –3 dB bandwidth > 200 MHz
- Rail-to-rail operation
- 6-lead SC70 package
- Fast switching times
- tON = 12 ns
- tOFF = 6 ns
- Typical power consumption (< 0.01 μW)
- TTL/CMOS compatible
ADG749 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
