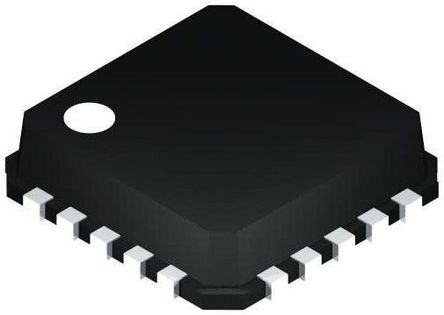

Image is for your reference only,please check specifications for details

ADG788BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC6255238
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
LFCSP-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADG788BCPZ Analogue Switch, Quad Channel, SPDT, 4Channels, 4.5Ω, 1.8V to 5.5V, LFCSP, 20Pins
Stock Locations:
Availability:
236 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.05

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADG788BCPZ is a single-pole double-throw (SPDT) quad Analog Switch exhibits break-before-make switching action preventing momentary shorting when switching channels. This multiplexer is designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed, very low on resistance, high signal bandwidths and low leakage currents. On resistance is in the region of a few ohms, is closely matched between switches and very flat over the full signal range. It can operates equally well in either direction and have an input signal range which extends to the supplies.
TTL/CMOS Compatible
19ns Switching times
<0.01µW Low power consumption
100pA Leakage Currents

Show

ADG788BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	LFCSP-20
Contacts Type	SPDT
Supply Current	1 nA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	20 Position
Drain to Source Resistance (on) (Rds)	2.50 mΩ
Power Dissipation	0.005 mW
Bandwidth	160 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	160 MHz
Power Dissipation (Max)	0.005 mW
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
