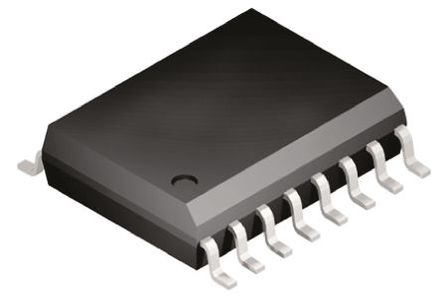

ADM691AARWZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC184711
Category:
Power Monitor
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
μP Supervisor with Battery Backup, Watchdog, Power Fail Indicator & Reset Generator Processor Supervisor 4.65V 4.75V to 5.5V Automotive 16Pin SOIC W Tube
Stock Locations:
Availability:
205 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.29

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADM691A series Supervisory Circuit offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include µP reset, backup-battery switchover, watchdog timer, CMOS RAM write protection and power-failure warning. The family of products provides an upgrade for the MAX691A/93A/800M family of products. Power-on reset output function during power-up, power-down and brownout conditions. The circuitry remains operational with VCC as low as 1V. Battery backup switching for CMOS RAM, CMOS microprocessor or other low power logic. A reset pulse if the optional watchdog timer has not been toggled within a specified time.
Low power consumption
Precision voltage monitor
Automatic battery backup power switching
Fast onboard gating of chip enable signals
1mA Standby current

Show

ADM691AARWZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	0.00V(min), 5.50V(max)
Power Rating	762 mW
Supply Current	0.1 mA
Number of Positions	16 Position
Power Dissipation	762 mW
Threshold Voltage	4.65 V
Output Current (Max)	25 mA
Reset Threshold Voltage (Min)	4.5 V
Reset Threshold Voltage (Max)	4.75 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	762 mW
Supply Voltage	0V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	0 V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
