Description
- Информация о продукте

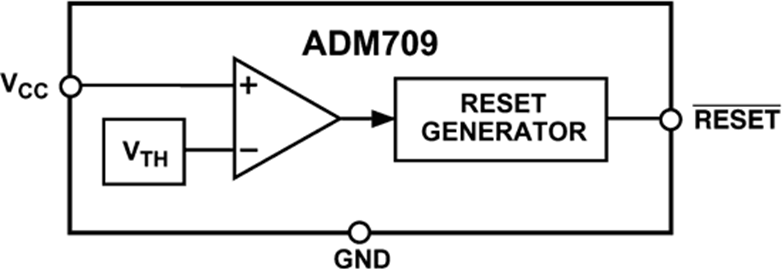

- ADM709 содержит монитор источника питания, который генерирует сброс системы при включении, выключении и понижении напряжения. Когда VCC падает ниже порога сброса, RESET переходит в низкий уровень и удерживает микропроцессор в состоянии сброса. При включении питания выход RESET удерживается на низком уровне в течение 140 мс после того, как VCC превысит порог. Выход RESET остается работоспособным при VCC до 1 В.
- Доступны три уровня порогового напряжения питания, подходящие для контроля питания +5 В, +3,3 В и +3 В. Фактическое пороговое напряжение сброса указано в техническом описании.
- ADM709 доступен в 8-выводных корпусах DIP и SOIC.
- ### Особенности и преимущества
- Прецизионный монитор напряжения питания
- Монитор источника питания +5 В, +3,3 В, +3 В
- Ток покоя 35 мкА
- Импульс сброса при включении 140 мс (мин)
- Низкая стоимость
- Корпуса DIP/SO с 8 выводами
- Апгрейд для MAX709
ADM709 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | SOIC |
| Show | |
| Product Lifecycle Status | Unknown |
