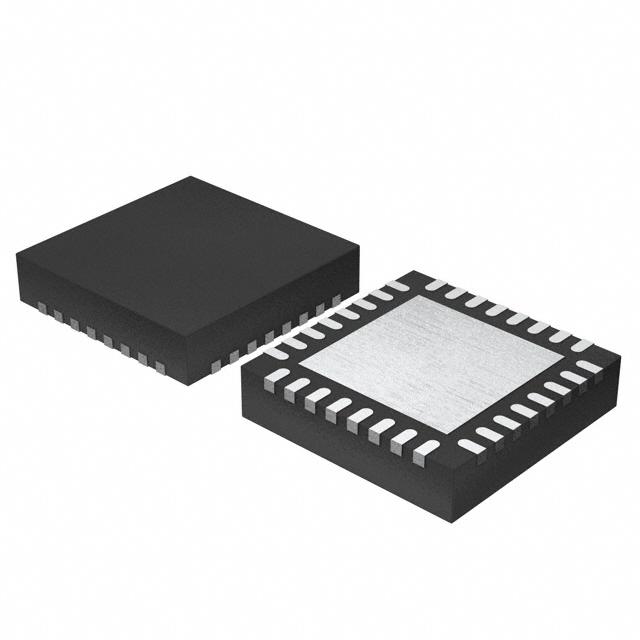

Image is for your reference only,please check specifications for details

ADS1204IRHBR - TI
Manufacturer:
TI
ManyChip's Part#:
MC27050944
Category:
Analog to Digital, ADC IC
Package:
VQFN-32
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ADS1204IRHBR Analog to Digital Converter, 16Bit, 40KSPS, Single, 4.75V, 5.25V, QFN
Stock Locations:
Availability:
1,750 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.52

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This ADS1204IRHBR ADC from Texas Instruments uses a transducer to convert real world physical signals into analog electrical signals before it converts analog signals to digital data. This device"s digital interface is parallel. This device is based on Delta-Sigma architecture. Its maximum power dissipation is 150 mW. It has a differential input signal. This ADC has a resolution of 16bit. This ADC has an input voltage of ±2.5 V. This ADC has a minimum operating temperature of -40 °C and a maximum of 105 °C.

Show

ADS1204IRHBR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	VQFN-32
Supply Voltage (DC)	4.75V (min)
Supply Current	22.5 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Bits	16 Bit
Power Dissipation	122 mW
Sample Rate	40 ksps
Power Consumption	122 mW
Number of ADCs	4 ADC
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	150 mW
Number of Input Channels	4 Channel
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
