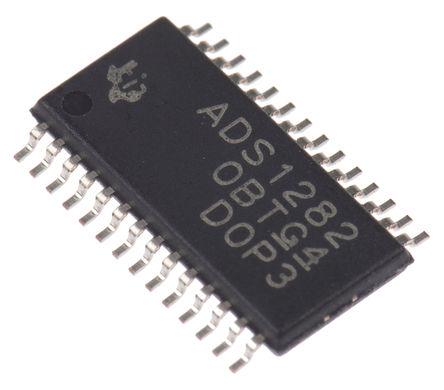

- ADS1282IPW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC23705321
-
Category:Analog to Digital, ADC IC
-
Package:TSSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converter Ultra High Resolution Delta Sigma ADC with PGA for Seismic and Energy Exploration AFE General Purpose 1ADC 31Bit ‚±2.5V/3.3V 28Pin TSSOP Tube
-
Stock Locations:
-
Availability:285 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 107.83
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADS1282IPW is an Analog-to-digital Converter (ADC) with an integrated, low-noise programmable gain amplifier (PGA) and two-channel input multiplexer (mux). An extremely high-performance single-chip ADC is suitable for the demanding needs of energy exploration and seismic monitoring environments. The converter uses a fourth-order, inherently stable, delta-sigma (ΔΣ) modulator that provides outstanding noise and linearity performance. The modulator is used either in conjunction with the on-chip digital filter or can be bypassed for use with post processing filters. The flexible input MUX provides an additional external input for measurement, as well as internal self-test connections. The PGA features outstanding low noise and high input impedance, allowing easy interfacing to geophones and hydrophones over a wide range of gains. The digital filter provides selectable data rates from 250 to 4000SPS. The high-pass filter (HPF) features an adjustable corner frequency.
- On-chip gain and offset scaling registers support system calibration
- Low-noise PGA
- 2-channel input mux
- Inherently-stable modulator with fast responding overrange detection
- Flexible digital filter
- Linear or minimum phase response
- Programmable high-pass filter
- Filter bypass
- Offset and gain calibration engine
- SYNC input
- Green product and no Sb/Br
ADS1282IPW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | TSSOP-28 |
| Supply Voltage (DC) | 1.65V (min) |
| Supply Current | 4.5 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 28 Position |
| Number of Bits | 31 Bit |
| Power Dissipation | 25 mW |
| Sample Rate | 4 ksps |
| Power Consumption | 27.0 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 35 mW |
| Number of Input Channels | 2 Channel |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 9.7 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
