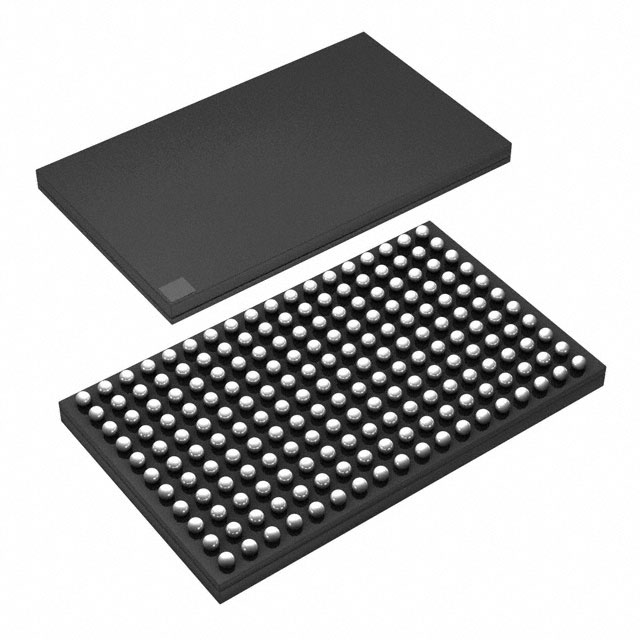

Image is for your reference only,please check specifications for details

ADS52J90ZZE - TI
Manufacturer:
TI
ManyChip's Part#:
MC4238804
Category:
Analog to Digital, ADC IC
Package:
LFBGA-198
Datasheet:
Datasheet 3D Model
Description:
10Bit, 12Bit, 14Bit Multichannel, Low-Power, High Speed ADC 198-NFBGA -40℃ to 85℃
Stock Locations:
Availability:
300 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 389.72

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADS52J90 is a low-power, high-performance, 16-channel, analog-to-digital converter (ADC). The conversion rate of each ADC goes up to a maximum of 100 MSPS in 10-bit mode. The maximum conversion rate reduces when the ADC resolution is set to a higher value.
The device can be configured to accept 8, 16, or 32 inputs. In 32-input mode, each ADC alternately samples and converts two different inputs each at an effective sampling rate that is half of the ADC conversion rate. In 8-bit input mode, two ADCs convert the same input in an interleaved manner, resulting in an effective sampling rate that is twice the ADC conversion rate. The ADC is designed to scale its power with the conversion rate.
The ADC outputs are serialized and output through a low-voltage differential signaling (LVDS) interface along with a frame clock and a high-speed bit clock
The device also has an optional JESD204B interface while operating in the 16-input and 32-input modes. This interface runs up to 5 Gbps.
The ADS52J90 is available in a 9-mm × 15-mm, 0.8-mm pitch, NFBGA-198 package and is specified over a temperature range of –40°C to +85°C.

Show

ADS52J90ZZE Specifications
