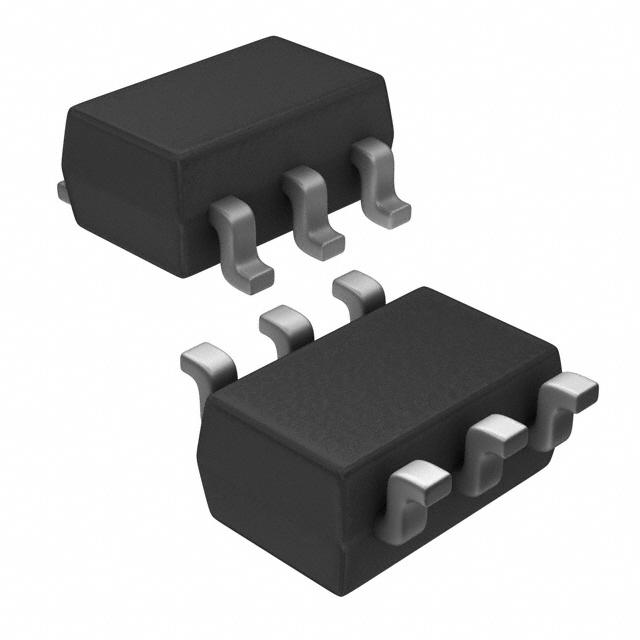

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Mosfet Array N and P-Channel Complementary 30V 3.4A, 2.3A 1.15W Surface Mount 6-TSOP

Show

AO6601 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-457
Power Rating	0.73 W
Polarity	N+P
Power Dissipation	1.15 W
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	3.4A/2.3A
Input Capacitance (Ciss)	285pF @15V(Vds)
Input Power (Max)	1.15 W
Power Dissipation (Max)	1.15 W
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
