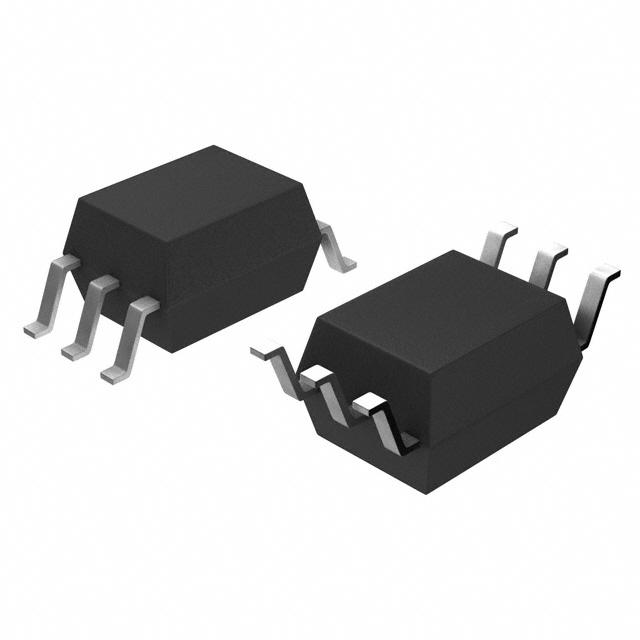

Image is for your reference only,please check specifications for details
Updated at 30/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * 60V type couples high capacity (0.55A) with low on-resistance (1U).
- * This is the low-cost version
- * PhotoMOS 1 Form B output type relay.
- * Normally closed type (2 Form B) is low on-resistance.
- * Controls low-level analog signals
- * High sensitivity, low ON resistance
- * Low-level off-state leakage current
- * Reinforced insulation 5,000 V type
AQV214S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOP-6 |
| Supply Voltage (DC) | 3.00 V |
| Current Rating | 0.1 A |
| Capacitance | 1.5 pF |
| Output Voltage | 0V ~ 400V |
| Output Current | 100 mA |
| Contacts Type | SPST-NO |
| Load Current | 100 mA |
| Input Current | 50 mA |
| Power Dissipation | 500 mW |
| Rise Time | 250 µs |
| Isolation Voltage | 1.5 kV |
| Forward Current | 700 µA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 400 V |
| Output Current (Max) | 0.1 A |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 500 mW |
| Voltage Rating | 400 VAC |
| Input Voltage | 1.14 VDC |
| Show | |
| Size-Length | 6.3 mm |
| Size-Width | 4.4 mm |
| Size-Height | 2.1 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
