Description
- PhotoMOS RF 1 Form A DIP6-pin type suited for radio frequent switching
- FEATURES
- 1\. High frequency characteristics with low capacitance between output terminals
- Low output capacitance: typ. 4.8 pF
- Isolation loss: 40 dB or more (at 1 MHz)(AQV225)
- 2\. High speed switching
- Turn on time: typ. 0.1 ms
- Turn off time: typ. 0.03 ms
- 3\. Low-level off state leakage current of typ. 0.03 nA
- 4\. Controls low-level analog signals
- PhotoMOS features extremely low closed-circuit offset voltages to enable control of small analog signals without distortion.
- TYPICAL APPLICATIONS
- 1\. Measuring instruments
- Scanner, IC checker, Board tester, etc.
- 2\. Audio visual equipment
- CD, VCR
- 3\. Security equipment

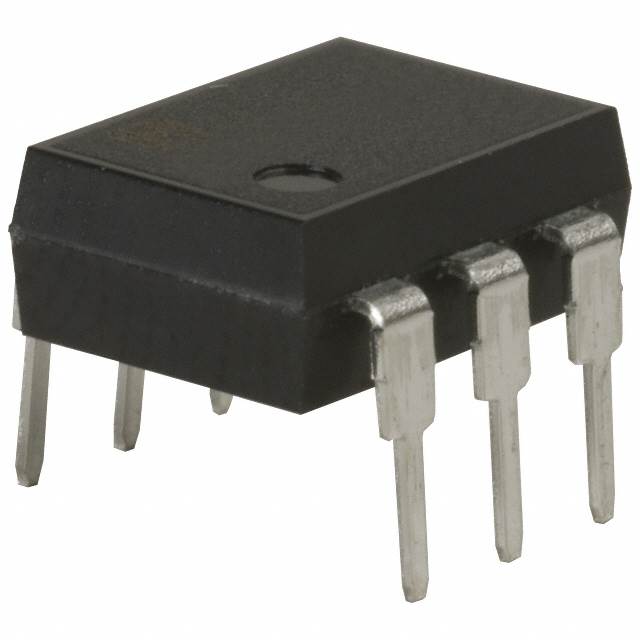

AQV221 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Supply Voltage (DC) | 3.00 V |
| Output Voltage | ≤40.0 V |
| Output Current | 80 mA |
| Contacts Type | SPST-NO |
| Load Current | 80 mA |
| Input Current | 50 mA |
| Rise Time | 100 µs |
| Isolation Voltage | 1500 v |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 40 V |
| Output Current (Max) | 0.08 A |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Input Voltage | 1.14 VDC |
| Show | |
| Size-Length | 8.80 mm |
| Size-Width | 6.40 mm |
| Size-Height | 3.90 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
