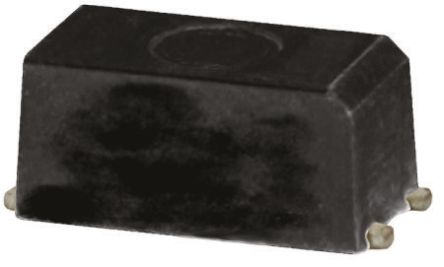

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AQY221R2V is a Solid State Relay with SPST-NO contact and surface-mount terminals. This AQY-series PhotoMOS RF relay with R-type that offers greatly reduced on-resistance. Mounting space has been reduced and output signals have been improved by using new flat lead terminals.
High speed switching
300mW Power dissipation
0.5ms Turn-on and 0.2ms turn-off maximum time
-40 to 85°C Operating temperature range

Show

AQY221R2V Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SSOP-4
Current Rating	0.25 A
Capacitance	18 pF
Output Voltage	0V ~ 40V
Output Current	250 mA
Contacts Type	SPST-NO
Load Current	250 mA
Input Current	5 mA
Power Dissipation	300 mW
Isolation Voltage	1.5 kV
Forward Current	900 µA
Input Voltage (Max)	1.5 V
Output Voltage (Max)	40 V
Output Current (Max)	0.25 A
Input Current (Min)	50 mA
Load Current (Max)	0.25 A
Load Current (Min)	1000 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	300 mW
Voltage Rating	40 VAC
Input Voltage	1.5 V
	Show
Size-Length	2.65 mm
Size-Width	2.65 mm
Size-Height	1.8 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536490050
ECCN Code	EAR99
