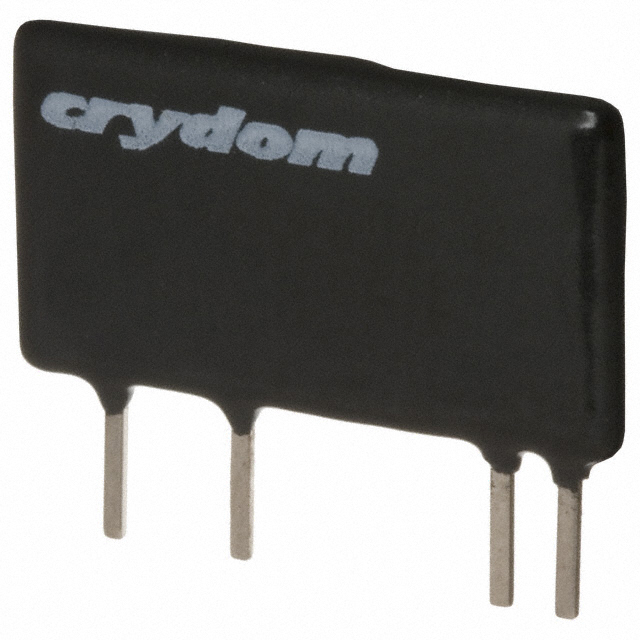

Image is for your reference only,please check specifications for details
- ASO241 - Crydom
-
Manufacturer:Crydom
-
ManyChip's Part#:MC18543767
-
Category:Solid State Relay
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:CRYDOM ASO241 Solid State Relay, ASO Series, Mini SIP, SPST-NO, 1.5A, PCB, Through Hole, 12Vrms, 280Vrms
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ASO241 is a mini-SIP Solid State Relay with thermally conductive epoxy encapsulation. The ASO series AC output solid state relay for PCB mounting.
- Zero voltage turn-on
- SCR output
- DC control
- 600Vpk Transient overvoltage
- 0.1mA RMS Maximum off-state leakage current at rated voltage
- 0.025ARMS Minimum load current
- 40Apk Maximum surge current (16.6ms)
- 1.5Vpk Maximum on-state voltage drop at rated current
- 0.5 Minimum power factor (with maximum load)
- 4VDC Must turn on voltage
- 1VDC Must turn off voltage
- 2500VRMS Dielectric strength (input/output/base (50/60Hz))
- 8pF Maximum capacitance (input/output)
- Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
ASO241 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Supply Voltage (DC) | 4.00V (min) |
| Current Rating | 1.5 A |
| Capacitance | 8 pF |
| Output Voltage | 24V ~ 280V |
| Output Current | 1500 mA |
| Contacts Type | SPST-NO |
| Load Current | 1.5 A |
| Input Current | 15 mA |
| Power Dissipation | 500 mW |
| Isolation Voltage | 2500 v |
| Input Voltage (Max) | 10 V |
| Input Voltage (Min) | 4 V |
| Output Voltage (Max) | 280 V |
| Input Current (Min) | 15 mA |
| Load Current (Max) | 1.5 Arms |
| Load Current (Min) | 0.025 A |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 280 VAC |
| Operating Voltage (Min) | 12 Vrms |
| Operating Voltage (Max) | 280 Vrms |
| Input Voltage | 10 V |
| Show | |
| Size-Length | 24.1 mm |
| Size-Width | 5.1 mm |
| Size-Height | 12.7 mm |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
