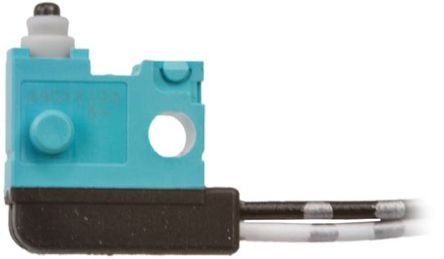

Image is for your reference only,please check specifications for details
- ASQ10230 - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC5282303
-
Category:Switch
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Переключатель мгновенного действия с нормально разомкнутым контактом, однополюсный однонаправленный, с толкателем в виде штифта, с выводными проводами, 0,1 А, 30 В пост. тока, усилие 1,5 Н, винтовое крепление
-
Stock Locations:
-
Availability:98 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.25
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Серия ASQ1 — герметичные переключатели с длинным ходом и скользящим контактом. Поскольку контактное усилие не зависит от рабочего хода, диапазон возможного использования по всему ходу значительно расширяется. Для типа с толкателем в виде штифта обеспечивается длинный ход с превышением (OT) более 2,2 мм на стороне NO и более 2,5 мм на стороне NC.
- Высокая контактная надежность для поддержки маломощных нагрузок
- Высокоэффективная герметизация для устойчивости к неблагоприятным условиям окружающей среды
- Бесшумная работа благодаря скользящему контакту
- Доступны выводы: проволочные, под пайку и для печатных плат
- Типы контактов: SPDT, SPST-NC и SPST-NO
- Степень защиты IP67 (кроме открытой контактной части контактного типа)
ASQ10230 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Case/Package | - |
| Voltage Rating (DC) | 30 V |
| Actuator Type | Pin Plunger |
| Voltage Rating (AC) | 20 V |
| Current Rating | 100mA (DC) |
| Contacts Type | SPST-NO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Contact Material | Gold Plating |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
