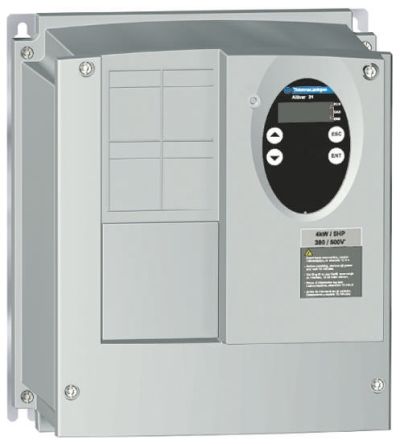

Image is for your reference only,please check specifications for details
- ATV31CU15N4 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC192749751
-
Category:Motors, Drive
-
Datasheet:Datasheet 3D Model
-
Description:ElectricALTIVAR 31inverter Drive 1.5 kWw/ EMC Filter, 3-Phasein, 380 to 500V, 6.4A
-
Stock Locations:
-
Availability:3 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 845.05
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ATV31 AC Drives offer cost-effective adjustable speed control for 0.25 to 20 HP, 208 (–15%) V/460 (+15%) V, while incorporating the latest sensorless flux vector technology into a compact drive design. Offering a high degree of versatility, the ATV31 AC Drive is a low-cost alternative for effective speed control of motors in a wide range of applications. It is ideally suited for industrial users and OEMs who specialize in small material handling, HVAC, pump or general-purpose motor control applications.
- **Features:**
- * Provides a Low-Cost Networking Solution
- * Monitors Motor Performance Feedback
- * Eliminates Added Installation Expense with Versatile Programmability
- * Saves Installation Time with Drive-Mounted Control Operators
- * Improves Reliability with Its Simplified Design
- * Adjustable Speed
- * Configuration Saved in the Drive Controller
- * Assignment of Several Functions to One Logic Input
- * Side-By-Side Mounting — “Bookshelf” Capability Up to +50°C
- * ATV31 Powersuite Software Included with Drive
- * Available with Display, Menu Navigation Keys and Local Control (Run/Stop Keys and Speed Reference Potentiometer) By Adding ‘A’ to the End of the Mfr."s Type; Contact Your Local Allied Sales Office
- **Specifications:**
- * 3 Analog Inputs
- * 1 Logic/Analog Output
- * 6 Logic Inputs
- * 2 Relay Outputs
- * I2t Overload Protection
- * Output Voltage: 208 (–15%)/240 (+15%) V Single- and Three-Phase
- * Fully Protected — Phase-to-Phase; Phase-to-Ground
- * IP20 Design
- * Communications: Modbus/CAN Bus Native to Drive
- * Operating Temperature: –10°C to +60°C, Capability
- * Approvals: UL Listed, CSA Certified
ATV31CU15N4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Current Rating | 6.4 A |
| Power Rating | 1.5 kW |
| Supply Voltage | 400 V |
| Show | |
| Size-Length | 297 mm |
| Size-Width | 215 mm |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
