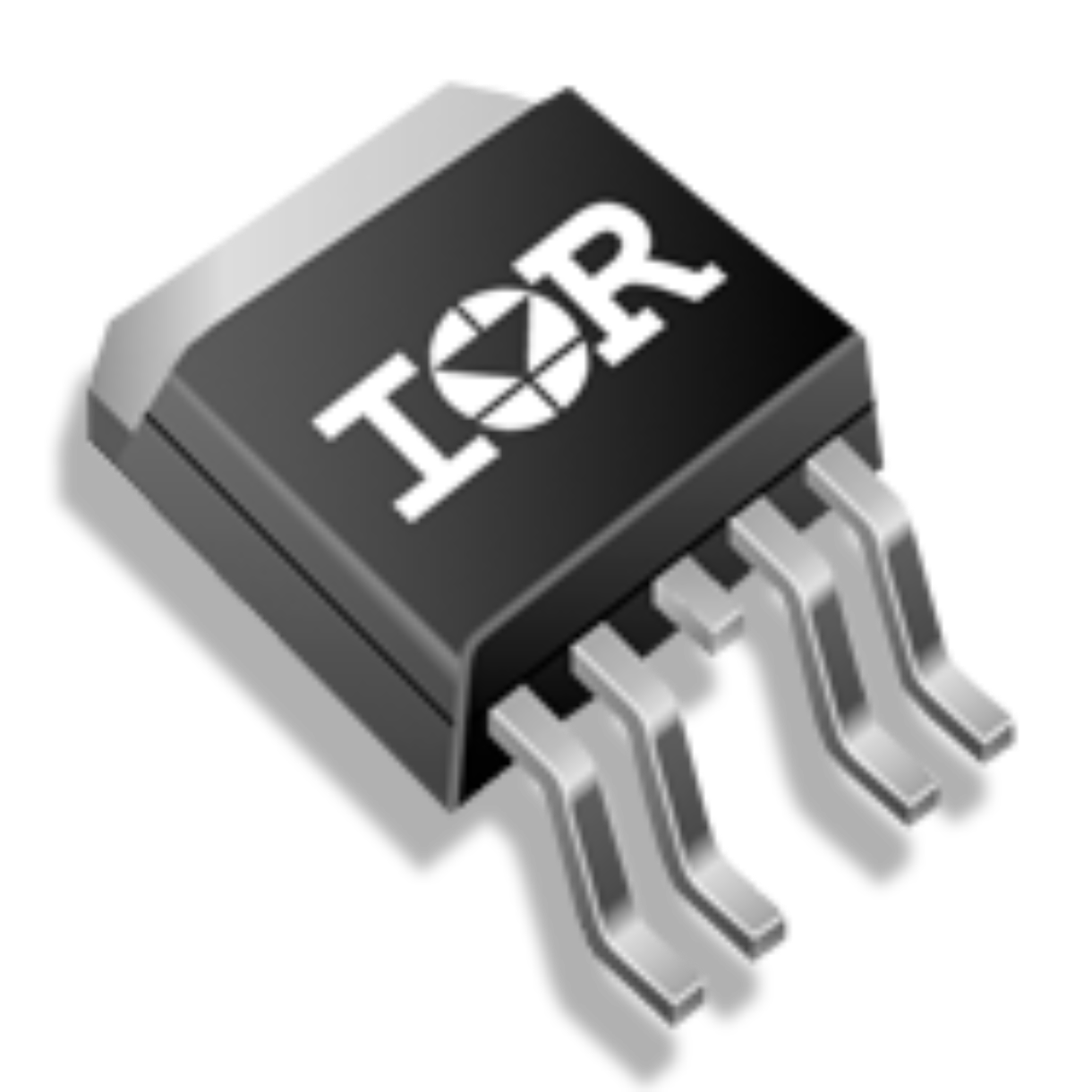

Image is for your reference only,please check specifications for details

AUIPS72211R - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC72019130
Category:
Power Distribution
Package:
TO-252-5
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 20A 0.03Ω Automotive 5Pin(4+Tab) DPAK Tube
Stock Locations:
Availability:
3,029 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.17

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

AUIPS72211R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Power Rating	2.5 W
Number of Outputs	1 Output
Output Current	20 A
Supply Current	4 mA
Number of Positions	5 Position
Power Dissipation	2.5 W
Output Current (Min)	20 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2500 mW
Input Voltage	5.5 V
	Show
Size-Length	6.73 mm
Size-Width	7.49 mm
Size-Height	2.39 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
