Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- Advanced Process Technology
- Optimized for Automotive Motor Drive, DC-DC and other Heavy Load Applications
- Exceptionally Small Footprint and Low Profile
- High Power Density
- Low Parasitic Parameters
- Dual Sided Cooling
- 175°C Operating Temperature
- Repetitive Avalanche Allowed up to Tjmax
- Lead Free, RoHS Compliant and Halogen Free
- Automotive Qualified

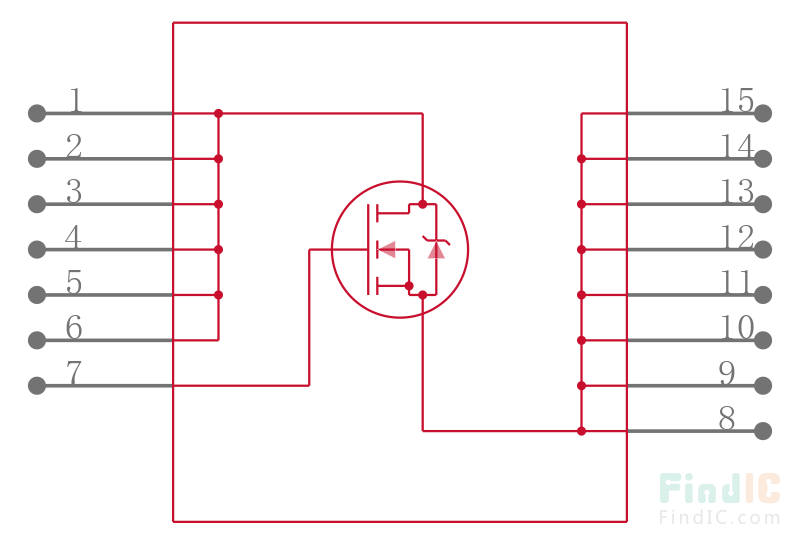

AUIRF7749L2TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 9 Pin |
| Case/Package | DirectFET-L8 |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 1.1 mΩ |
| Polarity | N-CH |
| Power Dissipation | 341 W |
| Threshold Voltage | 2 V |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Drain to Source) | 60 V |
| Continuous Drain Current (Ids) | 36A |
| Rise Time | 149 ns |
| Input Capacitance (Ciss) | 10655pF @25V(Vds) |
| Fall Time | 88 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 3.8W (Ta), 341W (Tc) |
| Show | |
| Size-Length | 9.15 mm |
| Size-Width | 7.1 mm |
| Size-Height | 0.74 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| ECCN Code | EAR99 |
