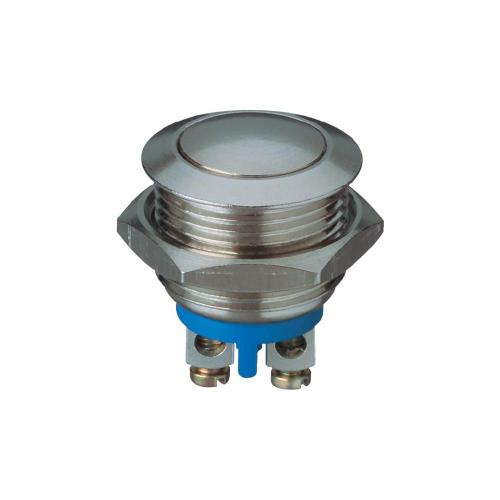

Image is for your reference only,please check specifications for details

AV0630C900 - Apem Components
Manufacturer:
Apem Components
ManyChip's Part#:
MC12327065
Category:
Pushbutton Switch, Switch Push button
Package:
-
Datasheet:
Datasheet 3D Model
Description:
APEM AV0630C900 Pushbutton Switch, (On), SPST-NO, 250V, 48V, 200mA, Screw
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.95

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AV0630C900 is a single-pole single-throw (SPST) momentary snap action security Pushbutton Switch with screw terminal, NO function and flat actuator. The AV series has silver plated brass contact, nickel plated brass actuator/bushing and short PBT case. Anti-jamming construction provides reduced travel to prevent insertion of foreign parts. Contact and mechanism protected against crushing.
16mm Bushing diameter
Attractive, robust and durable
Irremovable
Fire resistant, long life

Show

AV0630C900 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw, Panel
Case/Package	-
Contact Plating	Nickel
Voltage Rating (DC)	48 V
Actuator Type	Button
Current Rating	0.2 A
Insulation Resistance	1.00 GΩ
Orientation	Vertical
Contacts Type	SPST-NO
Contact Resistance	50.0 mΩ
Contact Current Rating	5.00 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	48 VDC
Voltage Rating (DC Max)	48 V
Maximum Contact Resistance (Max)	50 mΩ
	Show
Contact Material	Brass
Operating Temperature	-30℃ ~ 70℃
Product Lifecycle Status	50000 Cycle(s)
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
