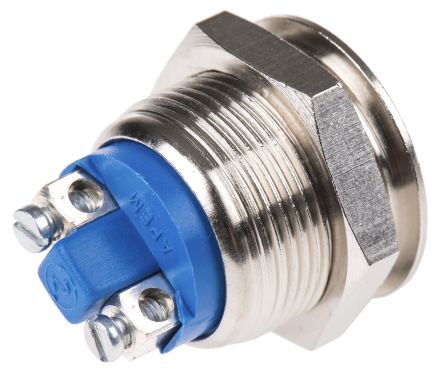

Image is for your reference only,please check specifications for details

AV191003C900 - Apem Components
Manufacturer:
Apem Components
ManyChip's Part#:
MC11629365
Category:
Pushbutton Switch, Switch Push button
Datasheet:
Datasheet 3D Model
Description:
Switch Push Button N.O. SPST Round Curved Button 2A 48VDC Momentary Contact Screw Panel Mount
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AV191003C900 is a single-pole single-throw (SPST) momentary security Pushbutton Switch with screw terminal, curved actuator and NO function. The AV series switch has silver plated brass contact, PBT short case and nickel plated brass actuator/bushing. Anti-jamming construction provides reduced travel to prevent insertion of foreign parts. Contact and mechanism protected against crushing.
19mm Bushing diameter
Attractive, robust and durable
Irremovable
Fire resistant, long life

Show

AV191003C900 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Lug, Panel
Number of Pins	2 Pin
Contact Plating	Nickel
Voltage Rating (DC)	48 V
Actuator Type	Button
Current Rating	2A (DC)
Insulation Resistance	1.00 GΩ
Orientation	Vertical
Contacts Type	SPST-NO
Contact Resistance	10.0 mΩ
Contact Current Rating	2A @48VDC
Current Rating (Max)	2 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	48 VDC
	Show
Size-Height	27.6 mm
Color	Silver
Contact Material	Brass
Operating Temperature	-30℃ ~ 70℃
Housing Material	Stainless Steel
Product Lifecycle Status	100000 Cycle(s)
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509031
ECCN Code	EAR99
