B39431R820H210 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC105422700
Category:
Resonator
Package:
SMD-4
Datasheet:
Datasheet 3D Model
Description:
SAW Resonator 433.92MHz 173ppm (Tol) FUND 22Ω Automotive 4Pin QCC4A SMD
Stock Locations:
Availability:
1,030 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

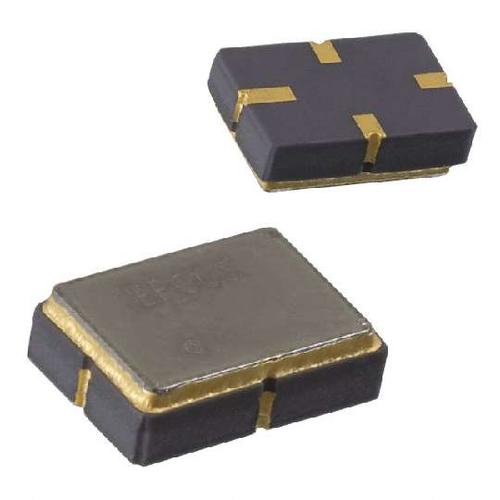

The B39431R820H210 is a 5 x 3.5mm surface-mount SAW Resonator with 1-port provides reliable, quartz frequency stabilization that is in transmitters or local oscillators. The crystal with Ni, gold-plated terminals and lead free soldering compatible with J - STD20C.
1.7dB Insertion attenuation
22R Maximum motional resistance
Passivation layer Elpas
ESD sensitive device, take proper precaution while handling the device.

Show

B39431R820H210 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SMD-4
Frequency	433.92 MHz
Frequency Tolerance	±173 ppm
Voltage Rating (DC)	12.0 V
Operating Voltage	12 VDC
Self Resonant Frequency	434 MHz
Resonant Frequency	433.92 MHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 V
	Show
Size-Length	5.00 mm
Size-Width	3.50 mm
Size-Height	1.45 mm
Lead Length	1.2 mm
Operating Temperature	-40℃ ~ 125℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
