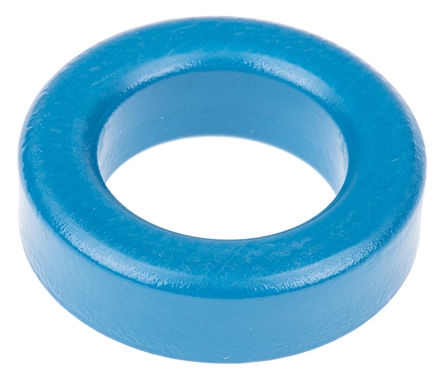

Image is for your reference only,please check specifications for details

B64290L0022X830 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC17683593
Category:
Ferrite
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
EPCOS B64290L0022X830 Transformer Cores, Cylindrical, Toroid, 41.8mm x 26.2mm x 12.5mm, N30, 103mm, 95.75mm²
Stock Locations:
Availability:
1,100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.99

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B64290L0022X830 is a Toroid Transformer Ferrite Core with N30 material grade and epoxy coating. The magnetic properties of NiZn materials can change irreversible in high magnetic fields.
5000 ±25% Inductance factor

Show

B64290L0022X830 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	41.80mm O.D. x 26.20mm I.D. x 12.50mm L
	Show
Size-Height	13.6 mm
Size-Inner Diameter	26.2 mm
Material	Ferrite
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
