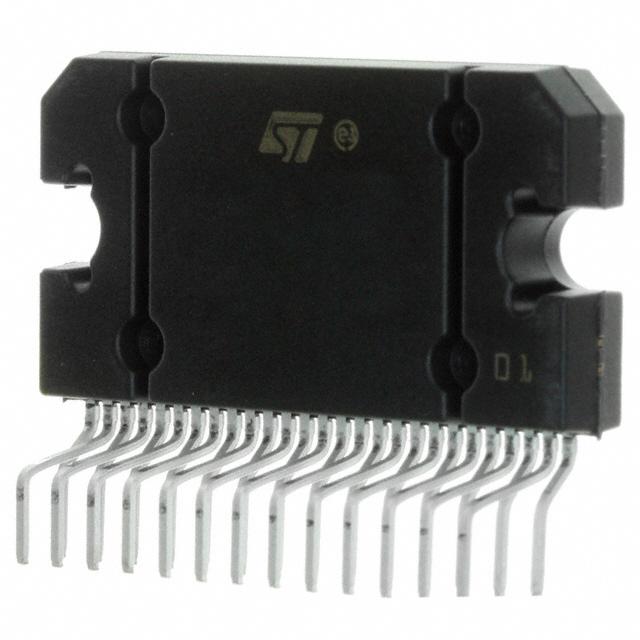

Image is for your reference only,please check specifications for details
- TDA7575B - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC34285200
-
Category:Audio Amplifier IC
-
Package:Flexiwatt-27
-
Datasheet:Datasheet 3D Model
-
Description:Аудиоусилитель для динамиков, 1 канал моно/2 канала стерео, 150 Вт, класс AB, 27 выводов, FLEXIWATT (вертикальный), трубка
-
Stock Locations:
-
Availability:267 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 18.93
Updated at 28/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Этот усилитель класса D TDA7575B производства STMicroelectronics усилит ваш звук. Данный аудиоусилитель может работать с током до 8000 мА. Его максимальная рассеиваемая мощность составляет 86000 мВт. Он имеет дифференциальный входной сигнал и дифференциальный выходной сигнал. Максимальное сопротивление нагрузки составляет 4 Ом. Выход: 1-канальный моно|2-канальный стерео. Температурный диапазон этого аудиоусилителя составляет от -55 °C до 150 °C. Устройство использует однополярное питание.
TDA7575B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 27 Pin |
| Case/Package | Flexiwatt-27 |
| Output Current | 8 A |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 27 Position |
| Power Dissipation | 86000 mW |
| Common Mode Rejection Ratio | 56 dB |
| Output Power | 150 W |
| Gain | 26 dB |
| Output Current (Max) | 8000 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 86000 mW |
| Minimum CMRR Range | 56 dB |
| Supply Voltage | 8V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 8 V |
| Show | |
| Size-Width | 4.5 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
