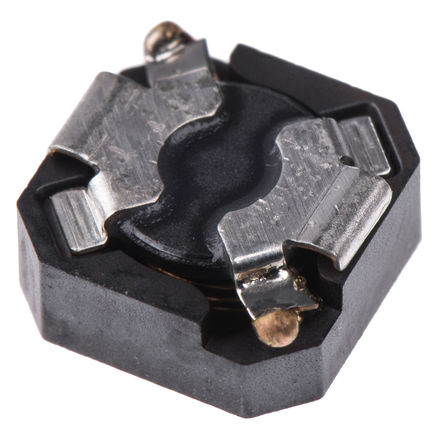

Image is for your reference only,please check specifications for details

B82462G4472M - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC29546740
Category:
Inductor
Package:
2424
Datasheet:
Datasheet 3D Model
Description:
Inductor Power Shielded Wirewound 4.7uH 20% 100kHz Ferrite 2A 40mOhm DCR 2424 Automotive T/R
Stock Locations:
Availability:
2,025 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.3

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B82462G4472M is a surface mount shielded Power Inductor with ferrite core. This B82462G series magnetically shielded inductor features enamel copper wire and winding welded to terminals. This inductor"s terminals are made of CuSn6 base Ag/Sn layer and electro-plated terminals. Supports 0.1MHz frequency and ±20% of inductance tolerance. It is suitable for reflow soldering.
High rated current
Low DC resistance
Qualified to AEC-Q200 standard

Show

B82462G4472M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	2424
Current Rating	2 A
Capacitance Tolerance	±20 %
Inductance	4.7 µH
Self Resonant Frequency	55 MHz
Resistance	0.04 Ω
Resonant Frequency	55.0 MHz
Shielding	No
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	≤40 mΩ
Current Rating (DC)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Resistance (DC Max)	0.04 Ω
	Show
Size-Length	6.3 mm
Size-Width	6.3 mm
Size-Height	3 mm
Operating Temperature	-55℃ ~ 150℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
