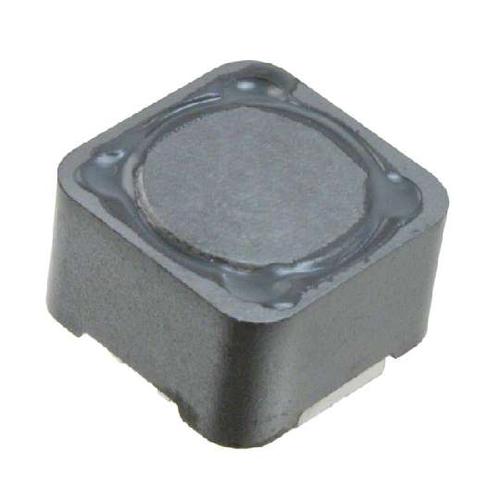

Image is for your reference only,please check specifications for details

B82477G4105M - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC93559700
Category:
Inductor
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Inductor Power Shielded Wirewound 1mH 20% 100kHz Ferrite 550mA 1.68Ω DCR T/R
Stock Locations:
Availability:
561 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.07

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B82477G4105M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	0.504" L x 0.504" W x 0.315" H (12.80mm x 12.80mm x 8.00mm)
Current Rating	550 mA
Capacitance Tolerance	±20 %
Inductance	1 mH
Resistance	1.68 Ω
Shielding	Yes
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	≤1.68 Ω
Current Rating (DC)	550 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	55 ℃
Resistance (DC Max)	1.68 Ω
	Show
Size-Length	12.8 mm
Size-Width	12.8 mm
Size-Height	8 mm
Operating Temperature	-55℃ ~ 125℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
