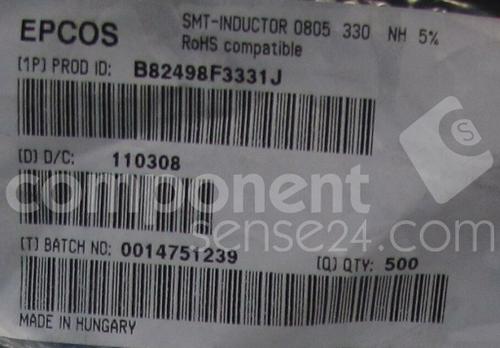

Image is for your reference only,please check specifications for details

B82498F3331J - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC46364800
Category:
Inductor
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
Inductor Chip Molded Wirewound 330nH 5% 100MHz 45Q-Factor Ceramic 220mA 1.5Ω DCR 0805 Automotive T/R
Stock Locations:
Availability:
1,801 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.44

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

B82498F3331J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Current Rating	220 mA
Capacitance Tolerance	±5 %
Inductance	330 nH
Self Resonant Frequency	800 MHz
Q-Factor	45.0
Resistance	1.50 Ω
Resonant Frequency	800 MHz
Shielding	No
Inductance Tolerance	±5 %
Test Frequency	100 MHz
DC Resistance (DCR)	≤1.5 Ω
Current Rating (DC)	220 mA
Resistance (DC Max)	1.5 Ω
	Show
Size-Length	2.3 mm
Size-Width	1.7 mm
Size-Height	1.4 mm
Operating Temperature	-55℃ ~ 125℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
