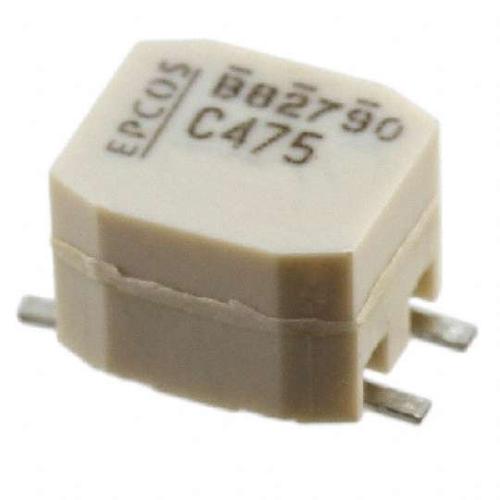

Image is for your reference only,please check specifications for details

B82790C475N265 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC43334037
Category:
Inductor Choke
Package:
Horizontal, 4 Gull Wing
Datasheet:
Datasheet 3D Model
Description:
Common Mode Chokes Dual 4.7mH 10kHz 200mA 510mOhm DCR SMD Automotive T/R
Stock Locations:
Availability:
1,391 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.59

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

B82790C475N265 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	Horizontal, 4 Gull Wing
Voltage Rating (DC)	80 V
Voltage Rating (AC)	42 V
Flammability Rating	UL 94 V-0
Inductance	4.7 mH
Resistance	550 mΩ
Inductance Tolerance	-30% ~ 50%
Test Frequency	10 kHz
DC Resistance (DCR)	510 mΩ
Current Rating (Max)	200 mA
Current Rating (DC)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	42 VAC
Resistance (DC Max)	0.55 Ω
	Show
Size-Length	9 mm
Size-Width	6 mm
Size-Height	5.2 mm
Operating Temperature	-40℃ ~ 125℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
