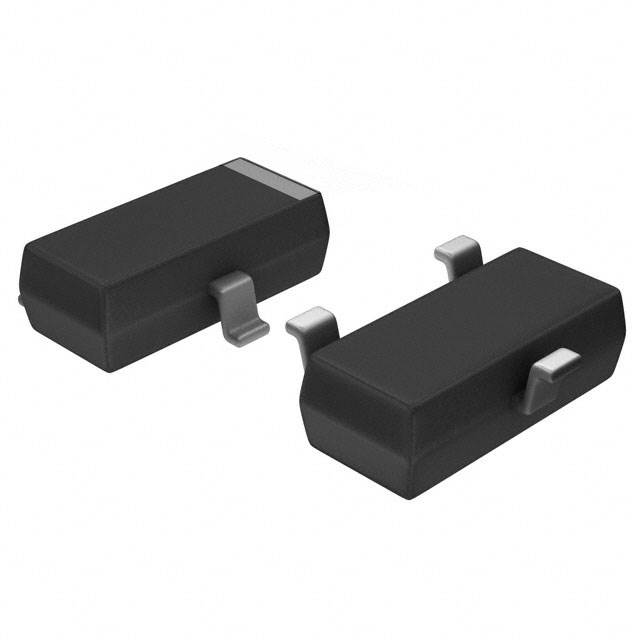

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BAS20 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Number of Positions	3 Position
Forward Voltage	1.25V @200mA
Power Dissipation	350 mW
Reverse recovery time	50 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	2 A
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	350 mW
	Show
Size-Length	2.9 mm
Size-Width	1.3 mm
Size-Height	0.97 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
