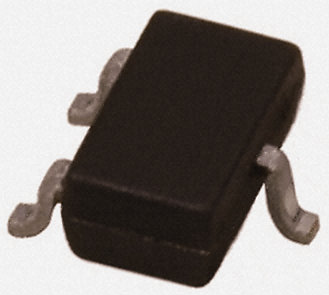

Image is for your reference only,please check specifications for details

BAS21DW5T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2634196
Category:
Small Signal Diode
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR BAS21DW5T1G Small Signal Diode, Single, 250V, 200mA, 1.25V, 50ns, 625mA
Stock Locations:
Availability:
1,135 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BAS21DW5T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Capacitance	5.00 pF
Halogen Free Status	Halogen Free
Number of Positions	5 Position
Forward Voltage	1.25 V
Power Dissipation	385 mW
Reverse recovery time	50 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	625 mA
Maximum Forward Voltage (Max)	1.25 V
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	385 mW
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
