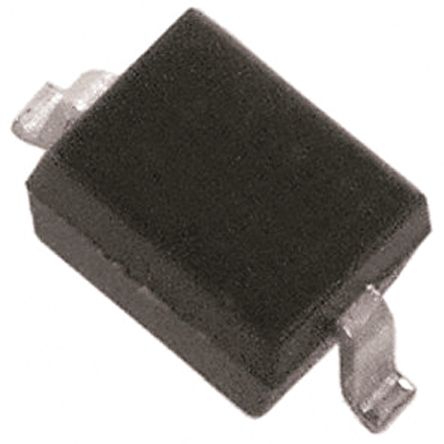

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BAT165E6327 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-323-2
Breakdown Voltage	40.0 V
Load Current	0.75 A
Forward Voltage	440 mV
Max Forward Surge Current (Ifsm)	2.5 A
Maximum Forward Voltage (Max)	740 mV
Forward Current (Max)	750 mA
Operating Temperature (Max)	150 ℃
	Show
Size-Length	1.25 mm
Size-Width	1.7 mm
Size-Height	0.9 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
HK STC License	NLR
