Description

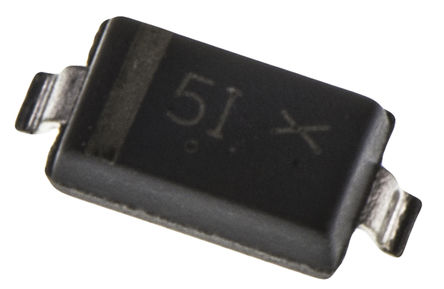

The BAT41ZFILM is a general purpose metal to silicon Small Signal Schottky Diode featuring extremely fast switching, low forward and reverse recovery times. This diode is specially suited for switching mode with low IR losses. This device has integrated protection against excessive voltage such as electrostatic discharges.
Very low conduction losses
Negligible switching losses
Surface mount device
Low capacitance diode
150°C Operating junction temperature (maximum)

Show

BAT41ZFILM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Voltage Rating (DC)	100 V
Current Rating	200 mA
Capacitance	3.00 pF
Output Current	≤200 mA
Number of Positions	2 Position
Forward Voltage	1V @200mA
Polarity	Standard
Thermal Resistance	500℃/W (RθJA)
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	2.85 mm
Size-Width	1.7 mm
Size-Height	1.35 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
