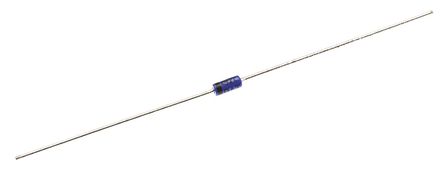

Image is for your reference only,please check specifications for details

BAT42 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC1894645
Category:
Schottky Diode
Package:
DO-35
Datasheet:
Datasheet 3D Model
Description:
BAT42 Series 30V 200mA Small Signal Schottky Diode Through Hole - DO-35
Stock Locations:
Availability:
853 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.08

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT42 is a metal to silicon small signal Schottky Diode feature very low turn-on voltage fast switching. This device have integrated protection against excessive voltage such as electrostatic discharge. Suitable for general purpose.
200mW Power dissipation
300°C/W Junction-to-ambient typical thermal resistance
7pF Typical junction capacitance

Show

BAT42 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35
Voltage Rating (DC)	30.0 V
Current Rating	200 mA
Capacitance	7.00 pF
Output Current	≤200 mA
Load Current	0.2 A
Number of Positions	2 Position
Forward Voltage	1V @200mA
Polarity	Standard
Power Dissipation	200 mW
Thermal Resistance	300℃/W (RθJA)
Reverse recovery time	5 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	400 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	125 ℃
Power Dissipation (Max)	200 mW
	Show
Size-Length	4.5 mm
Size-Width	2 mm
Size-Height	2 mm
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
