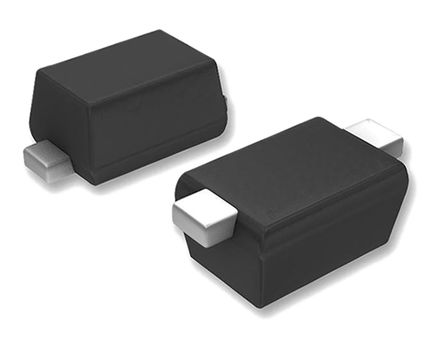

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT54KFILM is a surface mount Small Signal Schottky Diode featuring extremely fast switching, low capacitance, low forward and reverse recovery times.
Low conduction and reverse losses
Negligible switching losses
ECOPACK®2 compliant component
150°C Operating junction temperature (maximum)

Show

BAT54KFILM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-523
Voltage Rating (DC)	40.0 V
Current Rating	300 mA
Capacitance	7.00 pF
Output Current	≤300 mA
Number of Positions	2 Position
Forward Voltage	900mV @100mA
Polarity	Standard
Thermal Resistance	600℃/W (RθJA)
Reverse recovery time	5 ns
Forward Current	300 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	900 mV
Forward Current (Max)	300 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.6 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
