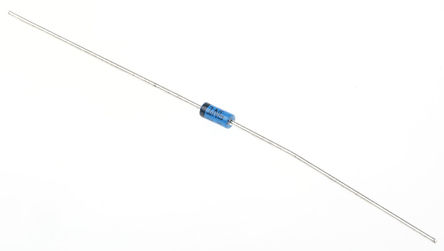

Image is for your reference only,please check specifications for details

1N6263 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC1706304
Category:
Schottky Diode
Package:
DO-35
Datasheet:
Datasheet 3D Model
Description:
1N6263 Series 60V 15mA Through Hole Small Signal Schottky Diode - DO-35
Stock Locations:
Availability:
152 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.07

Updated at 19/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

High performance devices for UHF/VHF applications, detecting, mixing, switching etc. Low turn-off voltage, as low as 0.34V @ 1mA. Pico-second switching speed. High breakdown voltage, up to 70V.

Show

1N6263 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35
Voltage Rating (DC)	60.0 V
Current Rating	15 mA
Capacitance	2.20 pF
Output Current	15 mA
Breakdown Voltage	60 V
Load Current	15 mA
Number of Positions	2 Position
Forward Voltage	1 V
Polarity	Standard
Thermal Resistance	400℃/W (RθJA)
Forward Current	15 mA
Max Forward Surge Current (Ifsm)	50 mA
Maximum Forward Voltage (Max)	410 mV
Forward Current (Max)	15 mA
Operating Temperature (Max)	200 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	4.5 mm
Size-Width	2 mm
Size-Height	2 mm
Weight	0.004535924 kg
Operating Temperature	-65℃ ~ 200℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
