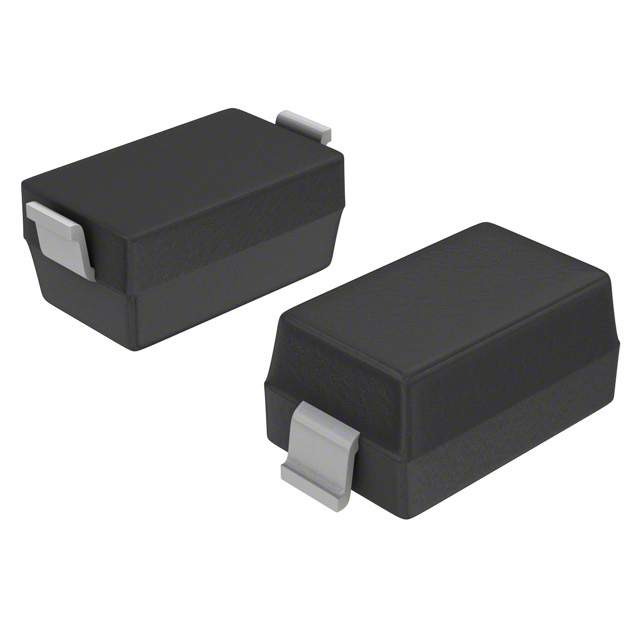

BAT54ZFILM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Voltage Rating (DC)	40.0 V
Current Rating	300 mA
Capacitance	7.00 pF
Output Current	≤300 mA
Number of Positions	2 Position
Forward Voltage	900mV @100mA
Polarity	Standard
Reverse recovery time	5 ns
Forward Current	300 mA
Max Forward Surge Current (Ifsm)	1.25 A
Maximum Forward Voltage (Max)	900mV @100mA
Forward Current (Max)	300 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Height	1.35 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
