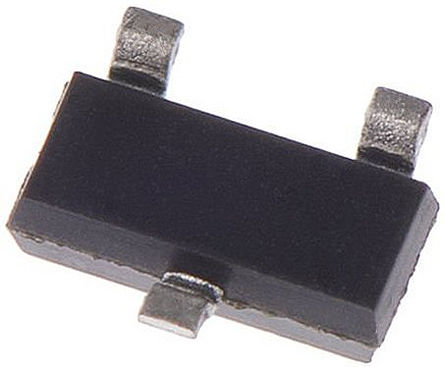

Image is for your reference only,please check specifications for details
- BAT754 - NXP
-
Manufacturer:NXP
-
ManyChip's Part#:MC135097661
-
Category:Schottky Diode
-
Package:SOT-23
-
Datasheet:Datasheet 3D Model
-
Description:NXP BAT754 Малосигнальный диод Шоттки, одиночный, 30 В, 200 мА, 340 мВ, 600 мА, 125°C
-
Stock Locations:
-
Availability:2,600 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.08
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Диоды серии BAT754 представляют собой планарные диоды с барьером Шоттки, оснащенные встроенным защитным кольцом для защиты от перенапряжений, выполненные в маленьком пластиковом корпусе для поверхностного монтажа SOT23 (TO-236AB). Они используются для сверхскоростного переключения, ограничения напряжения, оконечной нагрузки линий и защиты от обратной полярности.
- Низкое прямое напряжение
- Низкая емкость
- Квалифицирован по AEC-Q101
BAT754 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23 |
| Number of Positions | 3 Position |
| Forward Voltage | 800 mV |
| Forward Current | 200 mA |
| Max Forward Surge Current (Ifsm) | 600 mA |
| Maximum Forward Voltage (Max) | 340 mV |
| Forward Current (Max) | 200 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Junction Temperature | 125℃ (Max) |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.4 mm |
| Size-Height | 1 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
