Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

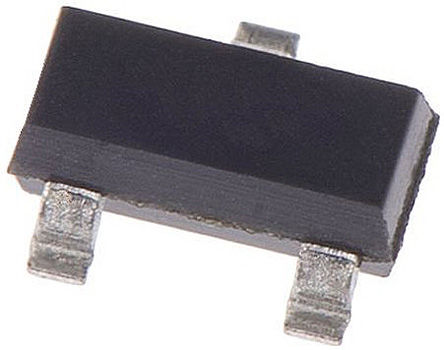

Case/Package | SOT-23-3 |
Frequency | 100 MHz |
Voltage Rating (DC) | -65.0 V |
Current Rating | -100 mA |
Number of Positions | 3 Position |
Polarity | PNP, P-Channel |
Power Dissipation | 225 mW |
Gain Bandwidth Product | 100 MHz |
Breakdown Voltage (Collector to Emitter) | 65 V |
Continuous Collector Current | 0.1A |
hFE Min | 125 @2mA, 5V |
Input Power (Max) | 225 mW |
DC Current Gain (hFE) | 125 |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 300 mW |
Show | |
Size-Length | 2.9 mm |
Size-Width | 1.3 mm |
Size-Height | 0.94 mm |
Material | Silicon |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
ECCN Code | EAR99 |
HK STC License | NLR |
