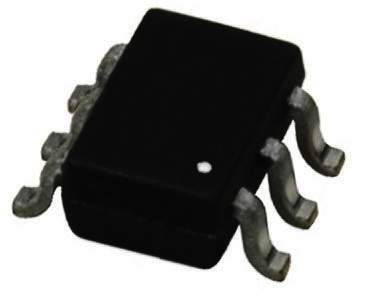

Image is for your reference only,please check specifications for details

BCR421UE6327HTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC11060983
Category:
LED Driver
Package:
SC-74-6
Datasheet:
Datasheet 3D Model
Description:
Led Driver, 3Outputs, Linear, Digital Dimming, 1.4V-40V in, 10kHz switch, 2V/150mA out, SC-74-6
Stock Locations:
Availability:
308 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 30/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BCR 421U E6327 is a LED Driver can be operated with a supply voltage of more than 40V considering the voltage drop of the LED load which reduces the output voltage to the maximum rating of the driver. It can withstand a maximum voltage of 40V which can be increased adding a series resistor in front of the enable pin reducing the voltage at the enable pin below 40V. This LED driver is a solution for driving 0.25W LEDs with a typical LED current of 75 to 150mA. Internal breakdown voltage is higher than 40V which is the maximum voltage the LED driver can sustain when the output is directly connected to supply voltage.
Easy paralleling of drivers to increase current
Low side current control
LED drive current preset to 10mA

Show

BCR421UE6327HTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-74-6
Number of Outputs	1 Output
Output Voltage	40 V
Output Current	150 mA
Number of Positions	6 Position
Power Dissipation	1000 W
Switching Frequency	10 kHz
Input Voltage (Max)	40 V
Input Voltage (Min)	1.4 V
Output Voltage (Max)	38 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	1.4V ~ 40V
Input Voltage	40 VDC
	Show
Size-Width	1.6 mm
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
