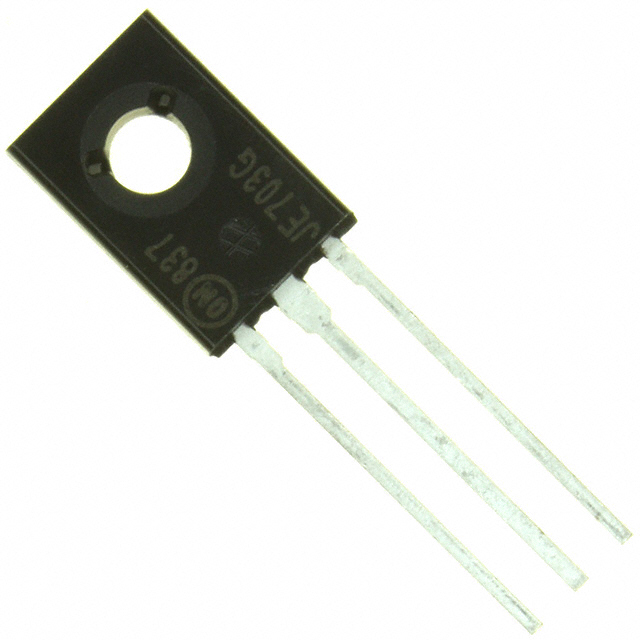

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

3.0 AMPERES POWER TRANSISTORS PNP SILICON 80 VOLTS, 30 WATTS
This device is designed for use in 5.0 to 10 Watt audio amplifiers and drivers utilizing complementary or quasi complementary circuits.
Features
•DC Current Gain − hFE= 40 (Min) @ IC= 0.15 Adc
•BD180 is complementary with BD179
•Pb−Free Package is Available

Show

BD180 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-126-3
Voltage Rating (DC)	-80.0 V
Current Rating	-3.00 A
Polarity	PNP
Power Dissipation	30 W
Breakdown Voltage (Collector to Emitter)	80 V
Continuous Collector Current	1A
hFE Min	40 @150mA, 2V
hFE Max	250
Input Power (Max)	30 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	7.74 mm
Size-Width	2.66 mm
Size-Height	11.04 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
