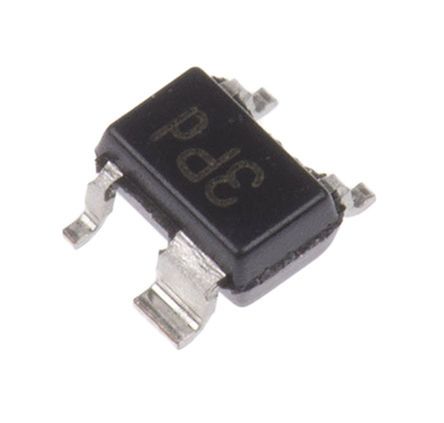

Image is for your reference only,please check specifications for details

BGA420H6327XTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC18766714
Category:
Amplifier chip
Package:
SOT-343-4
Datasheet:
Datasheet 3D Model
Description:
Wide Band Low Power, 100MHz Min, 1800MHz Max, ROHS COMPLIANT, SOT-343, 4Pin
Stock Locations:
Availability:
4,417 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.76

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BGA 420 H6327 is a Si-MMIC Low Noise Amplifier (LNA) in SIEGET®-25 technology. The LNA is as flexible as a discrete transistor and offers numerous integrated features for smaller and thinner mobile device designs. The device perfectly fits to the embedded FM radio active antennas in cellular phones (mobile FM radio).
Cascadable 50R gain block
Unconditionally stable
>28dB Reverse isolation
>12dB at 1.8GHz Return loss IN/OUT

Show

BGA420H6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-343-4
Frequency	0Hz ~ 3GHz
Supply Voltage (DC)	6.00V (max)
Supply Current	6.7 mA
Number of Channels	1 Channel
Number of Positions	4 Position
Power Dissipation	0.09 W
Output Power	90 mW
Gain	13 dB
Test Frequency	1 GHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	90 mW
Supply Voltage	3V ~ 6V
Supply Voltage (Max)	6 V
	Show
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	0.9 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
