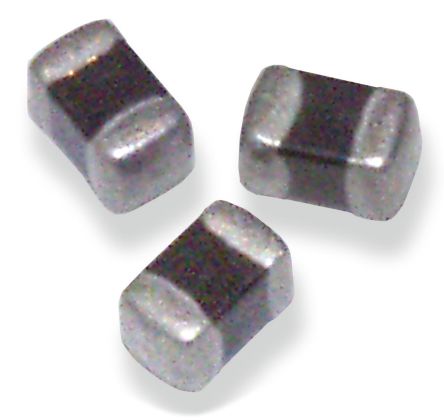

Image is for your reference only,please check specifications for details

BMB2A0600RS2 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC14783688
Category:
Ferrite
Package:
0805
Datasheet:
Datasheet 3D Model
Description:
TE CONNECTIVITY / SIGMA INDUCTORS BMB2A0600RS2 Ferrite Bead, 600Ω, 0805 [2012 Metric], 200mA, 0.5Ω, ± 25%
Stock Locations:
Availability:
936 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BMB-R series Multilayer Ferrite Bead is designed for low speed applications and specifically for use in digital sound circuitry and similar to prevent ringing. This chip device has been designed to generate high impedances at low frequencies. The R series is offered in three sizes 0603, 0805 and 1206 package sizes.
High impedance at lower frequency
Prevents signal ringing
Wide frequency characteristics
Matte Sn over Cu/Ni under-plate terminal finish

Show

BMB2A0600RS2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	2012
Case/Package	0805
Resistance	0.5 Ω
Test Frequency	100 MHz
DC Resistance (DCR)	0.5 Ω
Current Rating (Max)	200 mA
Current Rating (DC)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.5 Ω
	Show
Size-Length	2 mm
Size-Width	1.2 mm
Size-Height	1.1 mm
Material	Ferrite
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8504508000
ECCN Code	EAR99
