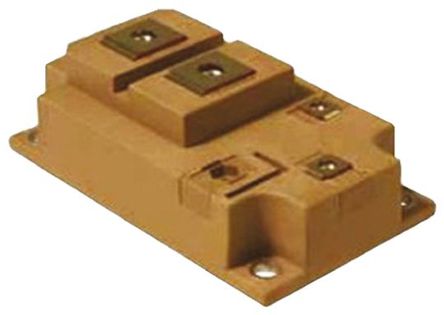

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Single switch * Including fast free-wheeling diodes * Package with insulated metal base plate

Show

BSM200GA120DN2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	5 Pin
Case/Package	62MM
Power Dissipation	1550 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1.55 kW
	Show
Size-Length	106.4 mm
Size-Width	61.4 mm
Size-Height	36.5 mm
Product Lifecycle Status	Not Recommended for New Design
Packaging	Box
RoHS	RoHS Compliant
ECCN Code	EAR99
