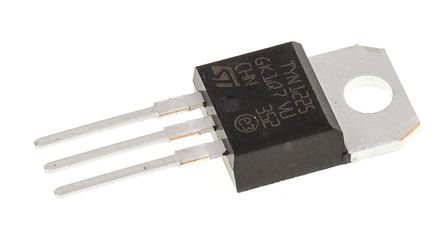

Image is for your reference only,please check specifications for details

TYN1225RG - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC3559282
Category:
SCR Diode, SCR
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TYN1225RG Thyristor, 1.2kV, 40mA, 16A, 25A, TO-220AB, 3Pins New
Stock Locations:
Availability:
176 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.24

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
These standard 25 A SCRs are suitable for general purpose applications.
Using clip assembly technology, they provide a superior performance in surge current capabilities.
Features
■ On-state rms current, IT(RMS)25 A
■ Repetitive peak off-state voltage, VDRM/VRRM 600 to 1200 V
■ Triggering gate current, IGT40 mA
■ Insulated package TO-220AB ins
– Insulating voltage 2500 V rms
– UL1557 certified (file ref. E81734)

Show

TYN1225RG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Contacts	3 Contact
Voltage Rating (DC)	1.20 kV
Current Rating	25.0 A
Number of Positions	3 Position
Holding Current	50 mA
Holding Current (Max)	50 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
