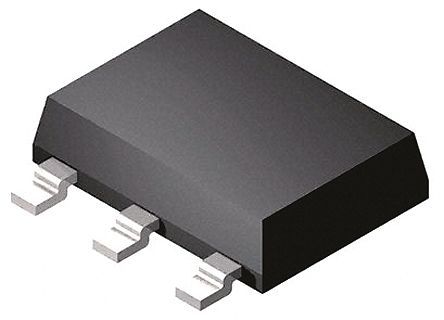

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BSP315PH6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Power Rating	1.8 W
Number of Positions	4 Position
Drain to Source Resistance (on) (Rds)	0.5 Ω
Polarity	P-CH
Power Dissipation	1.8 W
Threshold Voltage	1.5 V
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	1.17A
Rise Time	9 ns
Input Capacitance (Ciss)	160pF @25V(Vds)
Input Power (Max)	1.8 W
Fall Time	19 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.8 W
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
