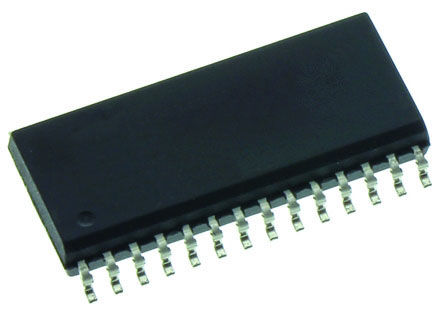

Image is for your reference only,please check specifications for details

BTM7710G - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC7065493
Category:
Switching Controller
Package:
PG-DSO-28
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 4 Driver, 15A, MOS, PDSO28, GREEN, PLASTIC, 28Pin
Stock Locations:
Availability:
243 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.09

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTM7710G is a 15A Trilith Integrated Full-bridge Driver IC containing one double high-side switch and two low-side switches. The drains of these three vertical DMOS chip are mounted on separated lead frames. The sources are connected to individual pins, so this can be used in H-bridge as well as in any other configuration.
Quad DMOS switch driver
Load and GND-short-circuit protection
Over-temperature shut down with hysteresis
Under-voltage detection with hysteresis
Status flag diagnosis
Internal clamp diodes
Isolated sources for external current sensing
ESD sensitive device, take proper precaution while handling the device.

Show

BTM7710G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	PG-DSO-28
Supply Voltage (DC)	4.50V (min)
Number of Outputs	1 Output
Output Current	15 A
Supply Current	3 mA
Number of Positions	28 Position
Output Current (Min)	15 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 42V
Supply Voltage (Max)	42 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	18.1 mm
Size-Width	7.6 mm
Size-Height	2.45 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
