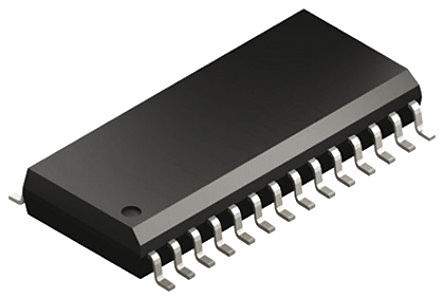

Image is for your reference only,please check specifications for details

BTM7751G - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC85237204
Category:
Motor Driver
Package:
PG-DSO-28
Datasheet:
Datasheet 3D Model
Description:
INFINEON BTM7751G Half Bridge Driver, 4.7V to 42V supply, 1 Output, SOIC-28
Stock Locations:
Availability:
515 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTM7751G is a H-bridge Driver IC containing three dies one double high-side switch and two low-side switches. The drains of the three vertical DMOS chips are mounted on separated lead frames. The sources are connected to individual pins, so the BTM7751G can be used in H-Bridge as well as in any other configuration. Both the double high-side and the two low-side switches of the BTM7751G are manufactured in SMART SIPMOS® technology which combines low RDS ON vertical DMOS power stages with CMOS circuitry for control, protection and diagnosis.
Quad D-MOS switch driver
Free configurable as bridge or quad-switch
PWM frequencies up to 1kHz
Status flag diagnosis
Short-circuit-protection
Over-temperature shut down with hysteresis
Internal clamp diodes
Open load detection in OFF-mode
Under-voltage detection with hysteresis

Show

BTM7751G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	PG-DSO-28
Supply Voltage (DC)	4.70V (min)
Number of Outputs	1 Output
Output Current	14 A
Number of Positions	28 Position
Switching Frequency	1 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 42V
Supply Voltage (Max)	42 V
Supply Voltage (Min)	4.7 V
	Show
Size-Length	18.1 mm
Size-Width	7.6 mm
Size-Height	2.45 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
