BTS141TCBUMA1 Infineon - Power Distribution

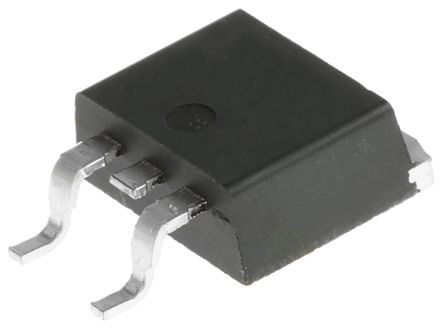

Image is for your reference only,please check specifications for details

BTS141TCBUMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC4053496
Category:
Power Distribution
Package:
TO-263
Datasheet:
Datasheet 3D Model
Description:
Силовой ключ, нижний плечевой, 1 выход, 12А, 0.031Ом, автомобильный, 3-выводной (2+вывод-радиатор) TO-263, лента и катушка
Stock Locations:
Availability:
282 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.85

Updated at 18/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

BTS141TC представляет собой N-канальный вертикальный силовой полевой транзистор, выполненный по технологии Smart SIPMOS® «чип-на-чипе». Обеспечивает встроенные функции защиты.
Вход с логическими уровнями
Защита входа (ESD)
Термическая защита с фиксацией состояния
Защита от перегрузки
Защита от короткого замыкания
Защита от перенапряжения
Ограничение тока
Возможность аналогового управления
Экологичный продукт
Максимальный ток регулируется внешним резистором
Соответствует стандарту AEC

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263
Number of Outputs	1 Output
Output Current	12 A
Number of Positions	3 Position
Power Dissipation	149 W
Output Current (Min)	12 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	149000 mW
Input Voltage	60 V
	Show
Size-Length	10 mm
Size-Width	9.25 mm
Size-Height	4.4 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
