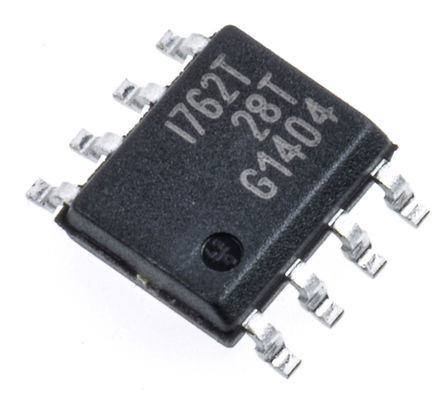

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Low input current
- Short circuit and Overload protection
- Current limitation
- Input protection (ESD)
- Thermal protection with auto restart
- Compatible to standard Power MOSFET
- Analog driving possible
- Two channel concept saves PCB footprint
- Green Product (RoHS compliant)
- AEC Qualified
BTS3405G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PG-DSO-8 |
| Supply Voltage (DC) | 0.00V(min), 10.0V(max) |
| Number of Outputs | 2 Output |
| Input Voltage (DC) | 10.0 V |
| Output Voltage | 10 V |
| Output Current | 350 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 780 mW |
| Output Current (Max) | 350 mA |
| Output Current (Min) | 0.35 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 780 mW |
| Input Voltage | 10 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.45 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
