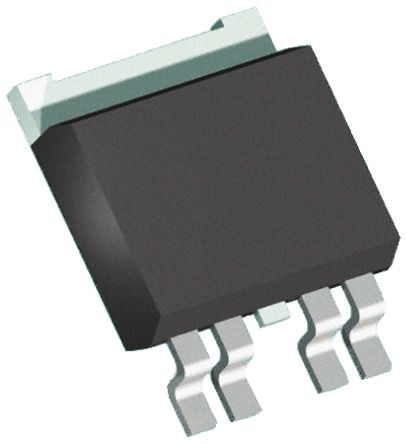

Image is for your reference only,please check specifications for details

BTS452TATMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC8502044
Category:
Power Distribution
Package:
TO-252-5
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 1.8A 0.15Ω Automotive 5Pin(4+Tab) TO-252 T/R
Stock Locations:
Availability:
227 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.91

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS452T is a high side Power Switch N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Fully protected by embedded protection functions.
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown with restart
Overvoltage protection (including load dump)
Shutdown when undervoltage
Fast demagnetization of inductive loads
Reverse battery protection with external resistor
CMOS compatible input
Electrostatic discharge (ESD) protection
Very low standby current
Green product
Negative voltage clamped at output with inductive loads

Show

BTS452TATMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Number of Outputs	1 Output
Output Current	1.8 A
Supply Current	0.8 mA
Number of Positions	5 Position
Power Dissipation	41.6 W
Output Current (Min)	1.8 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	41600 mW
Input Voltage	62 V
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
