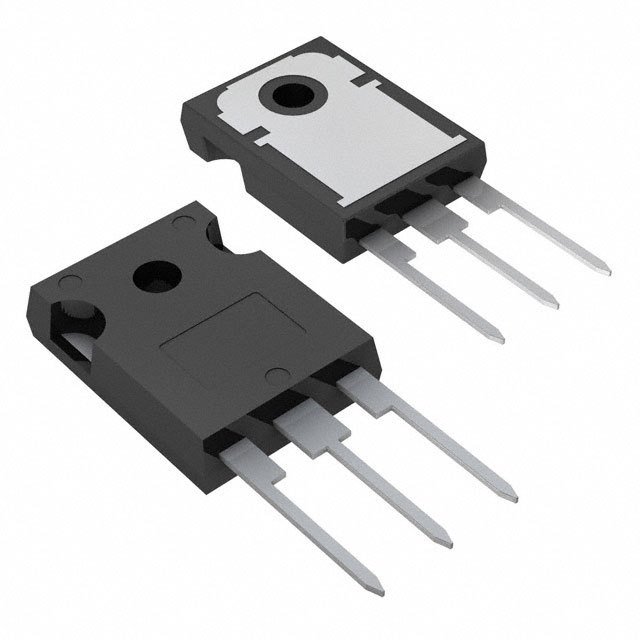

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The BU208A, BU508A and BU508AFI are manufactured using Multiepitaxial Mesa technology for cost-effective high performance and use a Hollow Emitter structure to enhance switching speeds.
■ STMicroelectronics PREFERRED SALESTYPES
■ HIGH VOLTAGE CAPABILITY (> 1500 V)
■ FULLY INSULATED PACKAGE (U.L. COMPLIANT) FOR EASY MOUNTING
APPLICATIONS:
■ HORIZONTAL DEFLECTION FOR COLOUR TV

Show

BU508A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	700 V
Current Rating	8.00 A
Power Dissipation	125 W
Breakdown Voltage (Collector to Emitter)	700 V
Input Power (Max)	125 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	125000 mW
	Show
Size-Length	15.2 mm
Size-Width	4.9 mm
Size-Height	12.2 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
