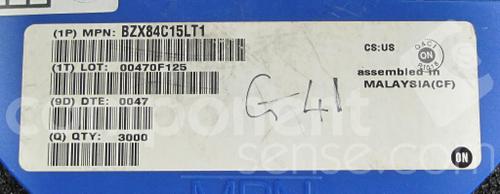

Image is for your reference only,please check specifications for details

BZX84C15LT1 - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC133493503
Category:
Zener Diode, Zener
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
0.25W(1/4W) 15V ±5% Zener Diode Voltage Regulator, SOT-23 (TO-236) 3 LEAD, 3000-REEL
Stock Locations:
Availability:
319 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.02

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Zener Voltage Regulators
225 mW SOT−23 Surface Mount
This series of Zener diodes is offered in the convenient, surface mount plastic SOT−23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.
Features
• Pb−Free Packages are Available
• 225 mW Rating on FR−4 or FR−5 Board
• Zener Breakdown Voltage Range − 2.4 V to 75 V
• Package Designed for Optimal Automated Board Assembly
• Small Package Size for High Density Applications
• ESD Rating of Class 3 (>16 KV) per Human Body Model
• Tight Tolerance Series Available (See Page 4)

Show

BZX84C15LT1 Specifications
